Mondrian is a general purpose statistical data-visualization system. It features outstanding interactive visualization techniques for data of almost any kind, and has particular strengths, compared to other tools, for working with Categorical Data, Geographical Data and LARGE Data.

All plots in Mondrian are fully linked, and offer many interactions and queries. Any case selected in a plot in Mondrian is highlighted in all other plots.

Currently implemented plots comprise Histograms, Boxplots y by x, Scatterplots, Barcharts, Mosaicplots, Missing Value Plots, Parallel Coordinates/Boxplots, SPLOMs and Maps.

Mondrian works with data in standard tab-delimited or comma-separated ASCII files and can load data from R workspaces. There is basic support for working directly on data in Databases (please email for further info).

Mondrian is written in JAVA and is distributed as a native application (wrapper) for MacOS X and Windows. Linux users need to start the jar-file. The latest version can be downloaded here.

If you have any questions or comments, please email mondrian@theusRus.de. Bugs may be submitted to the bug-tracker as well as per email.

News:

  • (08/29/13) New nightly build version 1.5b, fixing performance problems in very large maps and previewing the new universal importer.

  • (07/31/13) Posted some sample demo videos created by Antony Unwin. Once we get some more videos, there will be a video section on this page!

  • (10/03/12) Added new maps for France to the Map Library
    - on departmant level (96 departments), and
    - on regional level (22 regions)

  • (01/11/11) New release: Version 1.2
    The scatterplotsmoother now includes "principle curves", which are one of the nonlinear generalizations of principal components. All smoothers can be plotted for subgroups, which have a color assigned, "smoother by colors".
            The color scheme has been refined once again, to make use of colors as efficiently as possible. The use of alpha-transparency is now consistent between scatterplots and parallel coordinate plots.
            New Transformations: columnwise minimum and maximum. Sorting of levels is now stable, i.e. levels which have the same value for an ordering criterion will keep their previous order.

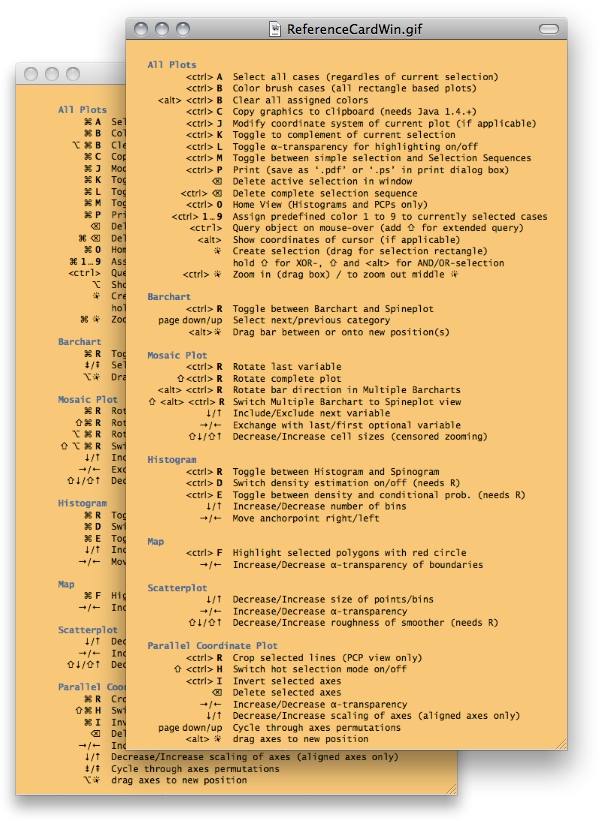

    The Reference Card speaks Windows now, i.e., Windows users no longer need to translate keyboard shortcuts from the Mac world.
    (Filed bugs fixed since last release: 19, 64, 82, 104, 150, 153, 155, 160, 161, 185, 186)

  • (01/02/11) The web page has been reworked and several issues have been fixed:
    • A new section with a Quickstart Guide
    • The order of the plot types now reflects their complexity.
    • Technical implementation details are now given where appropriate
    • The Map Library has been opened and we hope for many contributions

  • (09/10/09) The slides which go with the book "Interactive Graphics for Data Analysis – Principles and Examples" can now be found on the web.
    They should be a fruitful resource for everybody who wants to learn how to use Mondrian.
  • (10/21/08) Finally "the Book" is out.

    It covers a 30 page Manual on Mondrian and nine real world case studies in the second part of the book. The first part introduces the most important concepts to get the most out of a tool like Mondrian.

    See www.interactivegraphics.org for more information.
Book
  • (05/24/07) we have a Bugzilla based bug-tracker online. Please submit all bug reports and requests there - feel free to email after submission as well ...




 Quickstart
You only need a few clicks to get started using Mondrian:

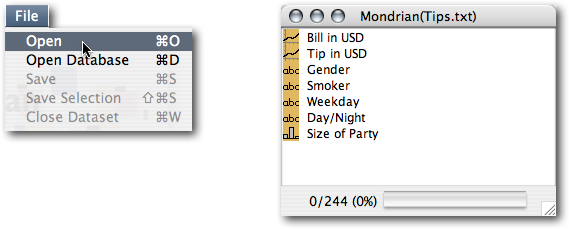

To open a dataset just go to the File menu and choose 'Open':
open a
                  dataset
We choose to load the 'Tips' data from the sample datasets. For more info on the format of Mondrian datasets see the support section.

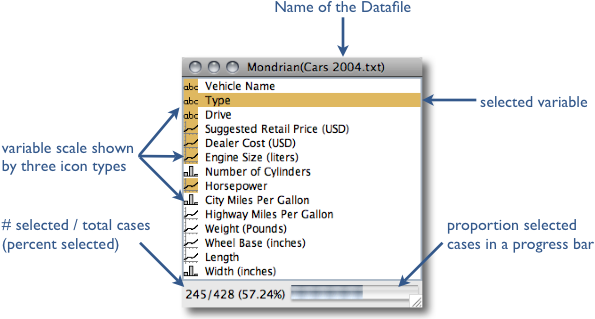

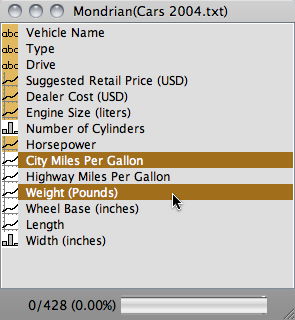

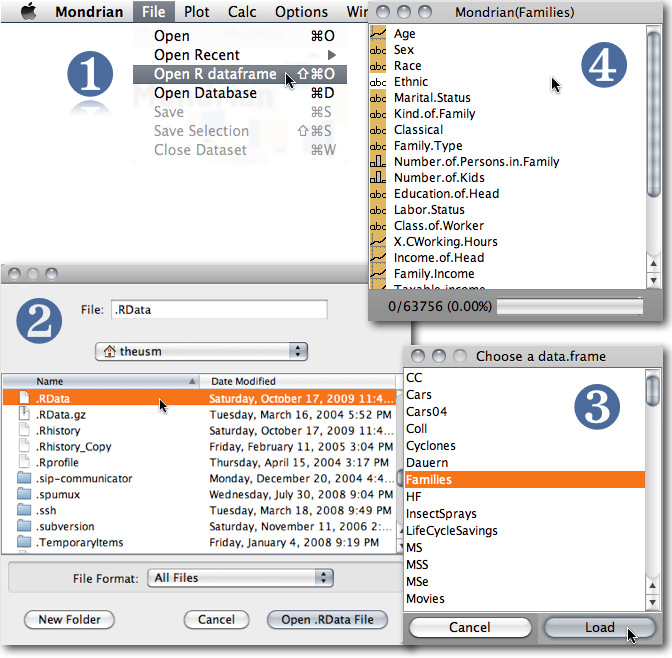

The variable window is the central hub of a Mondrian dataset. Here is what you can read from the window:

Variable
                      Window

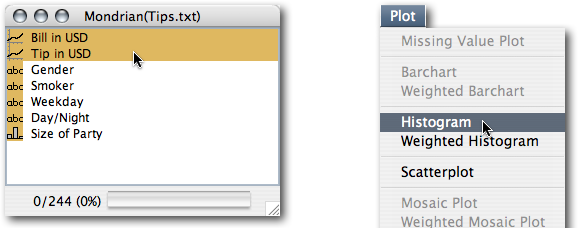

Now we can create our first plots in Mondrian; choose 'Bill in USD' and (by holding CTRL) 'Tip in USD' then select 'Histogram' from the 'Plot' menu:

create a histogram
You will get the following two histograms:

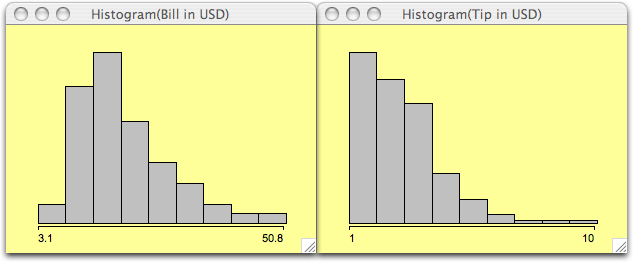

Two histograms for
                              the Tips dataset
Once you know how to create plots, create two barcharts for 'Gender' and 'Weekday'. Just click on 'Male' in the 'Gender' barchart and see the highlighting in the barchart of 'Weekday'.

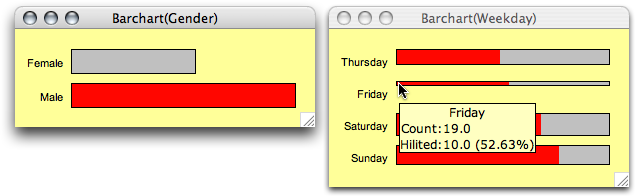

Linked barcharts
Use the context menu in the background (i.e., right click) to switch to a spineplot view in the barchart of 'Weekday'. Mouseover with CTRL pressed to see the information for 'Friday'.

You can find more details in the
book "Interactive Graphics for Data Analysis – Principles and Examples", but you should be up-and-running for now.

Also take a look at the sample videos created by Antony Unwin, giving you a nice intro into how you can use Mondrian.




 Plots

Histograms
The crucial issues in plotting histograms are to choose the ''right'' number of bins and
the ''right'' origin of the first bin. Since there are many rules and hints as to what ''right'' means under different assumptions, the most important interactive manipulations for histograms are changing the number (or width) of the bins and the origin. This is done by pushing the arrow keys (up and down changes the number of bins, and left and right moves the origin). In order to keep the visual distortion as small as possible, the scale of the histogram axis is not updated during the interactive reparametrization. Obviously the y-scale therefore represents probabilities and not counts.
     <meta>-0 adjusts the y-scale to the window size after the bin-width has been changed.

The context menu allows you to set a fixed bin width and origin, either by using the suggested "rounded" values or by entering arbitrary values in the dialog box. Furthermore, you may choose from two variations of the histogram, the spinogram and the CD-plot, both showing conditional distributions, which give a good idea of the distribution of a selected subsample.

When Rserve and R are installed, density estimation will enhance the histograms greatly.

histo    histo density

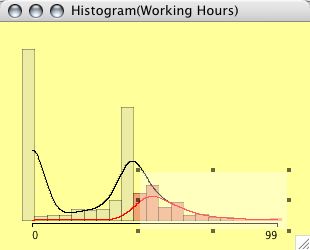

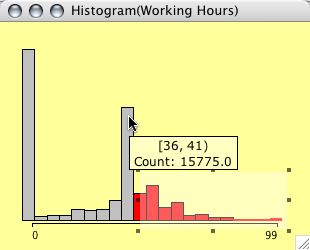

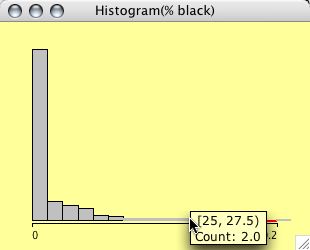

Histogram of the weekly working hours of almost 64.000 household heads


spino    CD plot

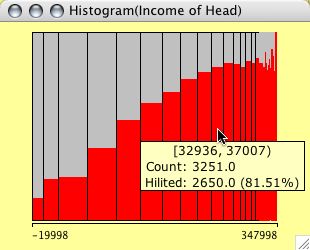

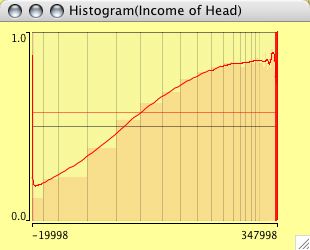

A linked spinogram showing the income of heads of households
(The right plot shows actually a CD-plot)



Histograms can be weighted. Select two continuous variables (the weights usually should be positive, although Mondrian will not complain about negative weights) and choose weighted Histogram from the plot menu.

Standard Histogram    weighted histogram

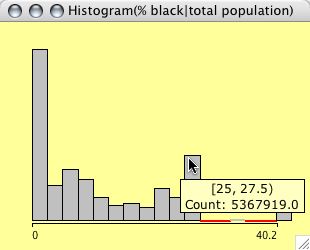

The example shows a typical situation for weighting in a histogram. The left plot shows the distribution of %blacks for the US Midwest counties. The right plot is weighted with the total population, thus showing us the number of people living in areas with a certain % of blacks.

Some technical definitions of histograms:
Default anchor point: Minimum of sample
Default binsize: (Maximum - Minimum) / 8.9 -> 9 Bins

R-code for density estimation:
> # no weights
> density(x, bw=bWidth, from=Min, to=Max)
> # weights
> density(x, bw=bWidth, weights=w/sum(w, na.rm=T), from=Min, to=Max)

The density estimate for the selected subsample of size SelN is scaled
by a factor SelN/N.

The bandwidth bWidth of density estimators is always identical to the
current binwidth of the histogram itself.


Boxplots

Boxplots y by x are for a single continuous variable, split by a second categorical variable. To invoke a boxplot y by x select the continuous variable to plot and the categorical variable to split by and select 'Boxplot y by x' in the 'Plots' menu.

Manual reordering of the classes is possible by reordering the levels in a corresponding barchart.

The context menu offers options to sort the levels by either median or IQ-range (and to reverse a current ordering.)



boxplot y by x

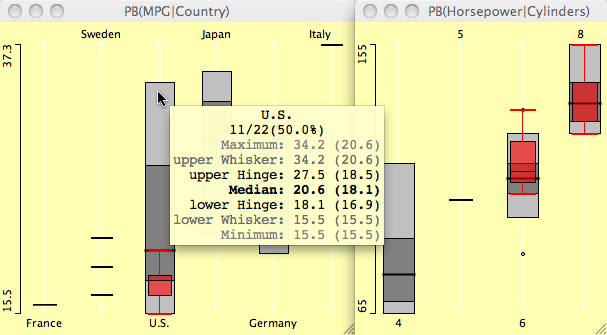

Boxplots y by x for the cars data set - heavy cars selected.

Parallel boxplots are very similar to parallel coordinate plots, and share most of their functionality.





Scatterplots

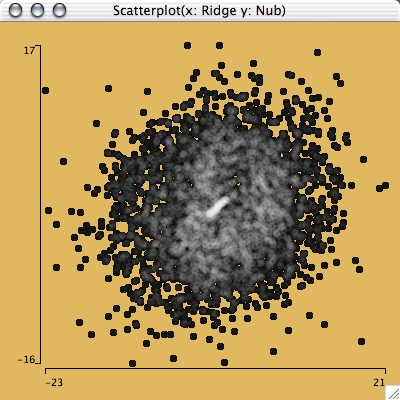

Scatterplots offer all basic interactions: data can be selected and highlighted, the scale can be zoomed.

In contrast to other plots in Mondrian, scatterplots offer axis information, showing the maximum and minimum for orientation.

Query methods for scatterplots operate on three levels. The first level simply gives the position of the cursor, which is displayed as a projection on the x- and y-axes. This query is invoked by  pressing the alt key. Pressing control invokes the second level of querying. A tooltip is presented with the data of the variables in the plot for the points at the cursor. If more than one point is found at the same distance, a list of the cases is presented in the tool tip. Holding shift and control shows the information of any selected variables in the variables list, i.e., an extended query showing data, which are not displayed in the plot.



query level
                      1
query level
                      2
query level
                      3
orientation objects extended

         Three levels of queries in a scatterplot

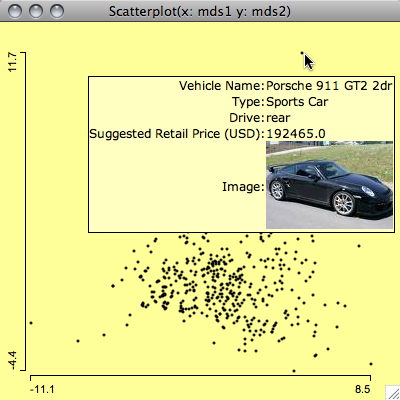

URL Query Example of an image query which shows a photo of the car, which turned out to be an outlier in the MDS.



In many cases it is very helpful to get additional information for an object, which might only be captured in an image, e.g. a chemical structure or a movie poster.

Mondrian allows you to specify a URL for an image location for each case. This can be an entire URL for every case, or a URL composed of a common part and a case specifc part. The common part of the URL is coded in the column name, the case specific part is the entry in the column.
The format is as follows: A column holding image URLs must start with '/U'. If there is a common part, it follows after the prefix. The position where the individual entry of the case goes is enclosed with '<' and '>'; this also defines the column name.

Example:

Model        /Uhttp://www.apple-history.com/images/models/<Image>   Launch date ...
Quadra 610   610.gif                                                1993        ...
iBook SE     ibookse.jpg                                            2000        ...
PowerMac G5  g5.jpg                                                 2005        ...
Apple iPhone iphone.jpg                                             2007        ...
...

In the example, the column header could as well be '/U<Image>' and each entry could contain the complete path, i.e. 'http://www.apple-history.com/images/models/...', though it would be far less efficient.



When Rserve and R are installed, scatterplots can be enhanced with scatterplot smoothers. Currently the list of smoothers comprises:
To control the amount of smoothing, use <shift> up/down arrow.

There is an option to compare the highlighted smoother
either to all data or to the complement.

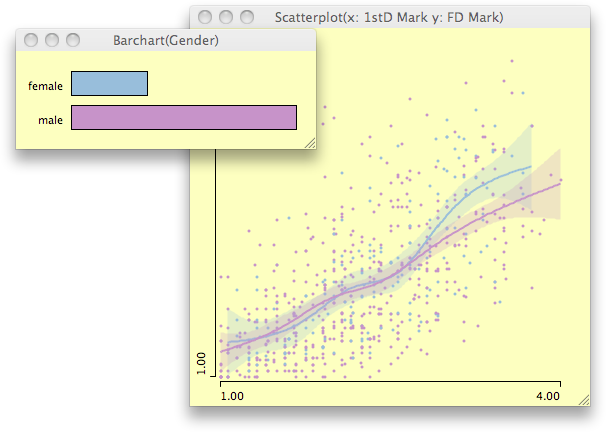

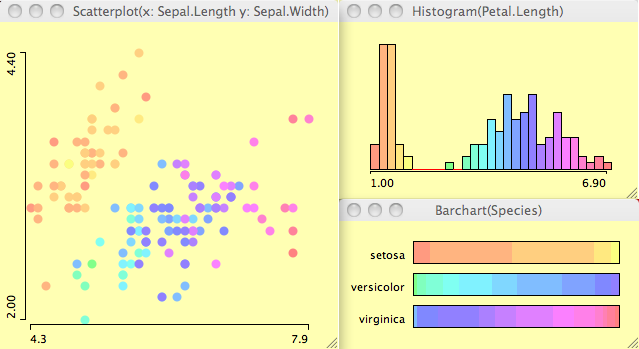

If colors are defined via color brushing or direct color assignment, smoothers are shown for all colored subgroups.

Color
                  Smoothers

Defaults and definitions in scatterplots:
Initial pointsize: 3 points (in-/decrease +/- 2 points)

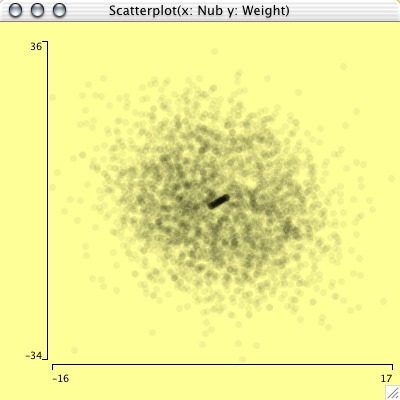

Initial alpha-transparency:

if( n < 400 )
alpha = 0%
else if ( n < 800 )
alpha = 25%
else if ( n < 1600 )
alpha = 50%
else if ( n < 3200 )
alpha = 62,5%
else if ( n < 6400 )
alpha = 75%
else
alpha = 87,5%

Definition of Smoothers
(with "smoother" being a positve integer degree of smoothness, "xf" the
points where the smoother shall be evaluated.)
>
> # loess
>
> predict(loess(y ~ x, span=3.75/smoother,
degree=1,
family=symmetric,
control = loess.control(iterations=3)),
data.frame(x=xf)
) )
>
> # splines
>
> predict(lm(y~ns(x, smoother)), interval="confidence", data.frame(x=xf))
>
> # principle curves
>
> principal.curve(as.matrix(cbind(x,y)), spar=0.3+6*(1/smoother+2))




Barcharts
Barcharts in Mondrian follow a vertical layout, not the traditional horizontal layout. Thus the category-names can be printed in full (in most cases).

Besides standard selection and interrogation techniques, interactivity in a barchart includes:

  • Reordering of levels via drag & drop (use <alt>-click on a bar or its text to drag)
    (Dropping between categories inserts, dropping on categories exchanges categories)
  • Switch between proportional width and height, between barchar and spineplot
  • Sort levels by
    • frequency
    • name
    • absolute highlighting
    • relative highlighting
  • Reverse current order
Since barcharts are scrollable, they may hold an arbitrary number of categories


barchart

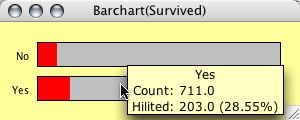

A barchart for the Titanic dataset. First class passenger are highlighted.



Spineplot

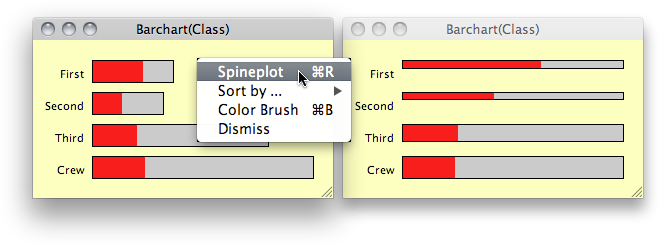

Barcharts can be switched to spineplots, which makes it possible to compare highlighted proportions in the selection.


When a barchart has very many categories, it can be hard to search particular items, especially if the barchart is sorted to something else than lexicographical order. You may type a prefix of the item you are looking for, and Mondrian will automatically scroll to that item.
(The same behavior can be found in the variables window - plus additional selection of the hits.)




Mosaicplot
Mosaicplots in Mondrian are fully interactive. Interactivity includes the standard operations described in the convention section (except zooming), plus reordering of the plot variables using the 4 arrow keys. Use <meta>-r to rotate the direction along which the last variable in the plot is split.

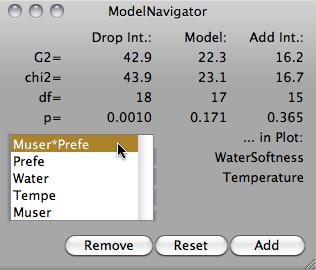

Use <meta>-+ and <meta>-- to add and delete interactions during the modeling process using the ModelNavigator. During the model process one may want to use the plot option to show the expected values of the model and not the observed values.

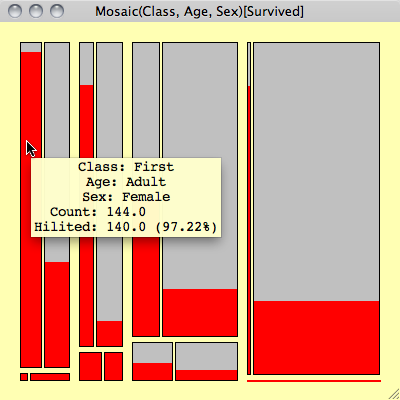

The picture below shows an example from the Titanic dataset, which includes information on the class (1,2,3 crew), age (child, adult) and gender (male, female) of the passengers. Surviving passengers are highlighted.

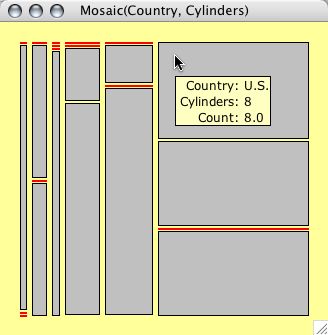

Mosaic

Although there are no labels to decode the cells, the order of the variables is given in the title of the window. Using interactive querying it is easy to check what the cells represent. In this static representation the fact that there are no children and hardly any women in the crew, should be sufficient to decode the plot.



rotated
              mosaic plot

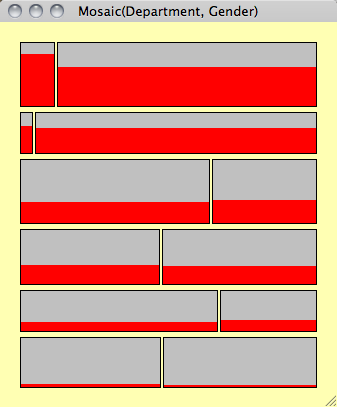

Example of a rotated Mosaic plot, i.e. first variable is split along y not x.



Additionally Mondrian features four variations of mosaicplots. The figures below show the same data from the cars data set, in all five possible variations. Use the pop-up menu for the plot options:
Standard

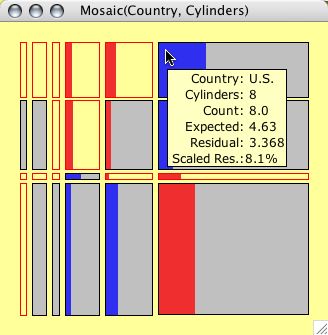

Observed values
Expected values
(according to current model)

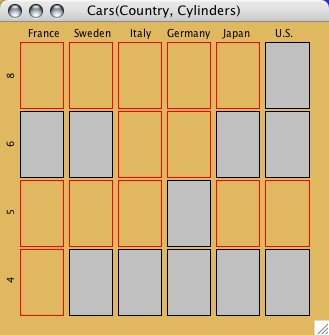

Same bin size

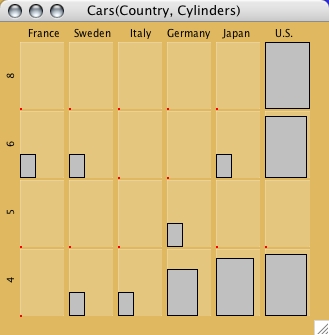

Fluctuation diagram
These plots show the five different variations of mosaicplots. Whereas the first two options are "real" mosaicplots, the other three versions (same bin size, fluctuation diagram and multiple barchart) are more useful for handling only a few variables with many categories, which is the worst case for a standard mosaicplot.

For these three variations, Mondrian plots the category labels for the first two variables, since the categories are equally spaced and so can be easily labelled.

By typing shift-up-arrow and shift-down-arrow, the size of boxes can be zoomed. As soon as a box reaches its maximum size, it is red-framed to indicate the incorrect size.

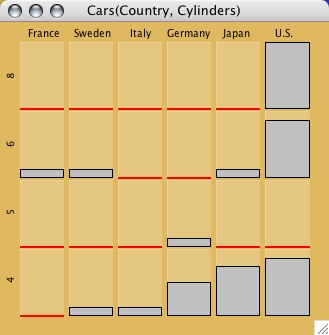

Multiple barcharts





Missing
Value Plot

I

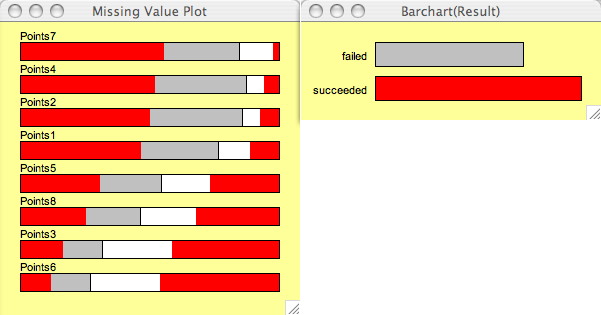

f the dataset has missing values, a missing value plot can be used to analyze the structure of the missing values (monotone missingness etc.).
MVP
In a missing value plot, only those variables are shown, which actually have missings.

The options of the
missing value plot are similar to those of a barchart (sorting etc.)

Missing values MUST BE CODED AS "NA"!!




Parallel
Coordinate
Plot

Mondrian implements parallel coordinate plots for an arbitrary number of variables. Alphanumerical categorical variables are displayed equally spaced according to the currently defined order. Numerical variables are scaled according to their actual numbers.

Besides standard selection and querying, interactivity in a parallel coordinate plot includes:

  • Reordering of the variables via drag & drop (use <alt>-drag)
  • Switch between common and individual scaling (also for selected subsets of axes)
  • Adjust α-level of lines via the context-menu or the left and right arrow keys.
  • Select Axes by a single click on the axis name and use:
    • BACKSPACE to delete this axis from the plot
    • <meta>-I to invert the axis
  • Type PAGE-UP or PAGE-DOWN repeatedly to cycle through the minimum number of orderings for seeing ALL adjacencies of the variables in the plot.
    (Note: For k variables we need [(k+1)/2] permutations as shown in Ed Wegman's 1991 paper)
Additionally two commands allow us to focus on specific subgroups of the data:
  • HotSelection only shows the currently selected points in PCPs
  • Crop Selection removes the currently selected lines from the PCP. Subsequent crop operations allow you to peel a data set. (only works for lines)
Selections can only be performed on axes not on lines. If a plot with many variables doesn't fit the screen, use meta-0 to fit to screen size.


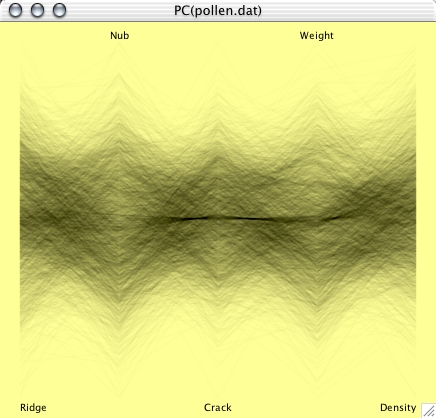

PCP plot

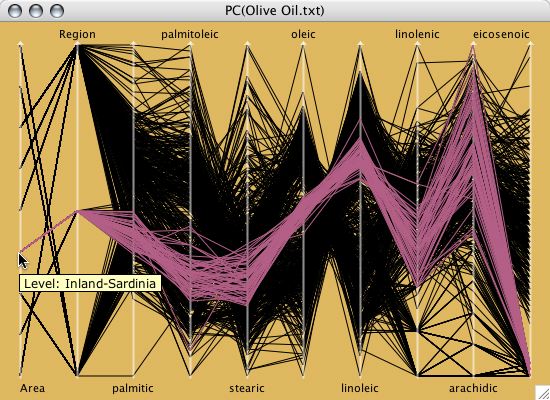

A parallel coordinate plot for the olive oil data.



parallel boxplots

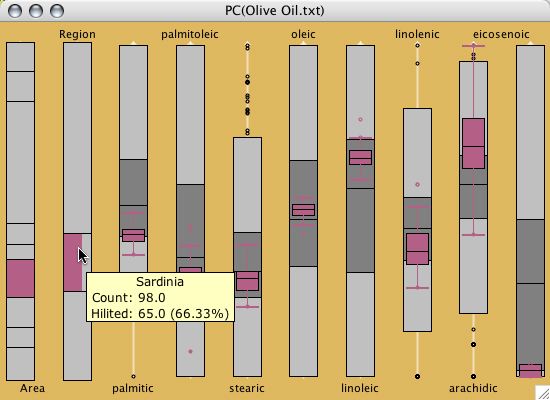

A parallel box plot for the olive oil data.

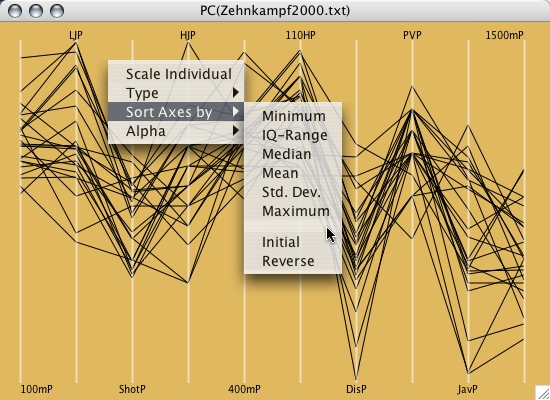

The "Sort Axes by" menu offers various ways to sort axes:



The align menu offers ways to align/center the axes according to:
  • Center: scale from min to max (default)
  • Mean: center axes around mean
  • Median: center axes around median
  • Case: If a single case is selected, this case is used as the reference.
  • Value ...: Enter a desired value.
The last four settings use +/- 3 sigma or IQR as scaling. Use arrow key <up> and <down> to increase or decrease the scale.

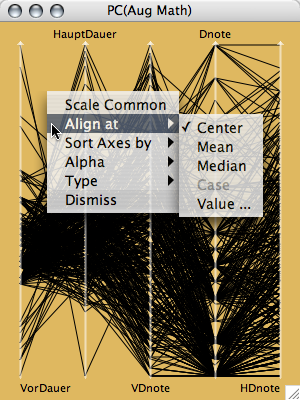

PCP Align



SPLOM

S
PLOMs (ScatterPLOtMatrix) in Mondrian are "only" a collection of standard scatterplots, efficiently arranged in a single frame. Thus it has the disadvantage that all keyboard shortcuts apply to all panels simultaneously, but the advantage that each panel is a fully featured scatterplot.

Note:
SPLOMs are quite effective for a quick 2-d overview, but are inefficient when working with more then just a few variables. In the case of many variables, parallel coordinate plots are far more effective.

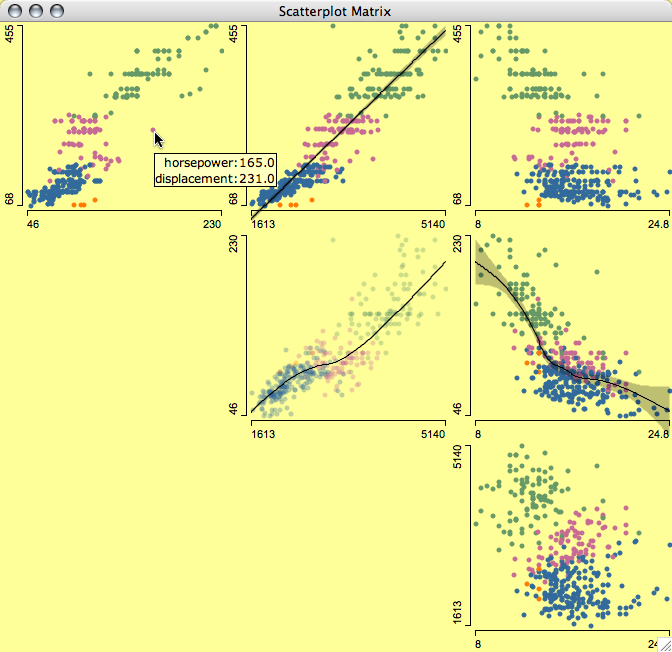

SPLOM



Maps
Whenever a dataset contains information by regions, Mondrian can draw interactive maps if the regions are available as polygons in a separate map file.

A corresponding data record must be provided for each polygon defined in the dataset. Different polygons might point to the same data record, but multiple records to a set of polygons are ignored.

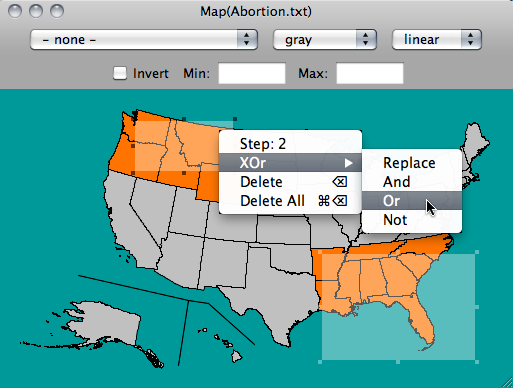

Maps offer the standard selection and querying tools. Additionally the standard zooming function of Mondrian is available.

All maps have a popup-menu at the top to create a choropleth map of any of the variables.
Further options include:

  • Color schemes
    • "white to black"
    • "red"
    • "green"
    • "blue"
    • "blue to red"
    • "blue to white to red"
    • if R and Rserve are installed
      • "heat"
      • "terrain"
      • "topo"
  • Invert color scheme
  • Assign color linearly, normalized, or by rank
  • Limit minimum or maximum to a specific value


Map gray
map green
grayscale green color scheme
map blue to red

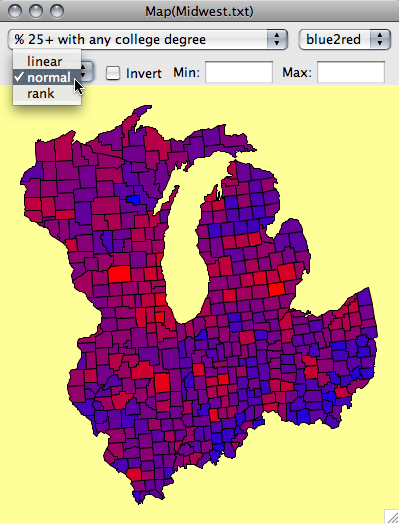

map normalized
blue to red color scheme normalized blue to red color scheme
blue to white to red
blue to white to red
                      with limiter
normalized blue to white to red scheme linear blue to white to red with limit to 30

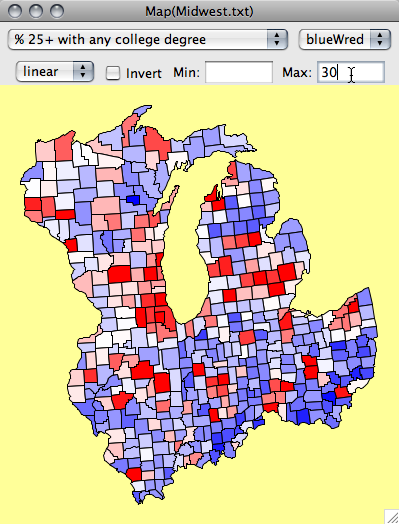

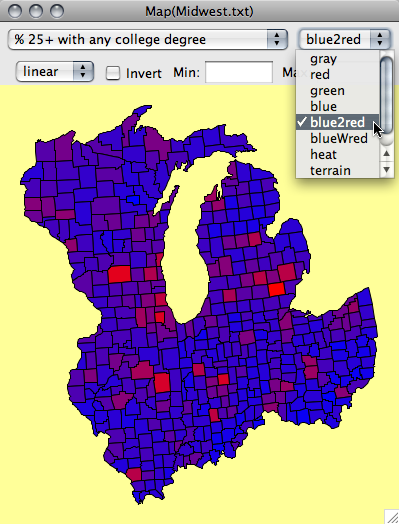

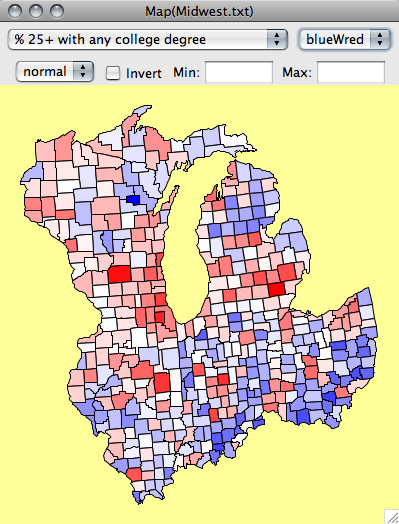

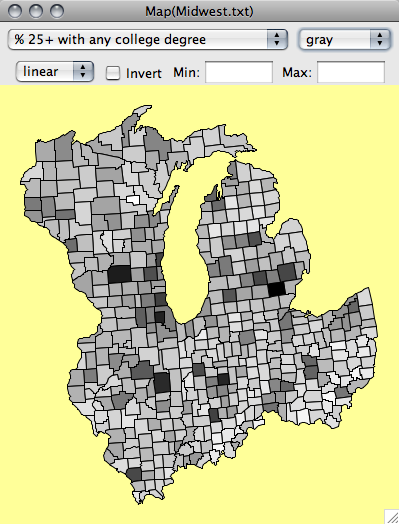

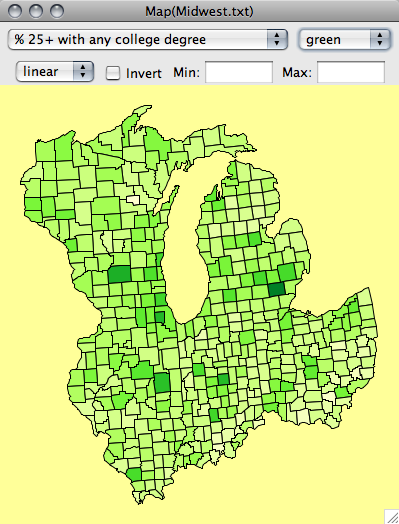

Six choropleth maps of the five Midwest states, shaded according to educational status



The saturation (more precisely the alpha) of boundaries can now be changed with the right arrow key (more saturation) or left arror key (less saturation).
This can change the perception of the map drastically, so make sure to test it out!

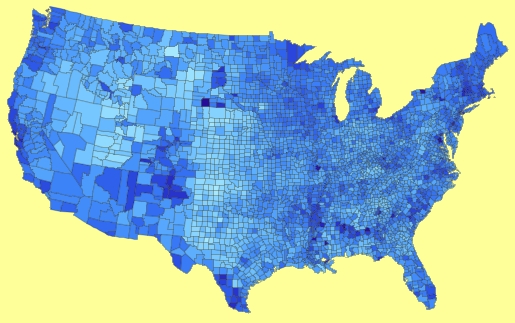

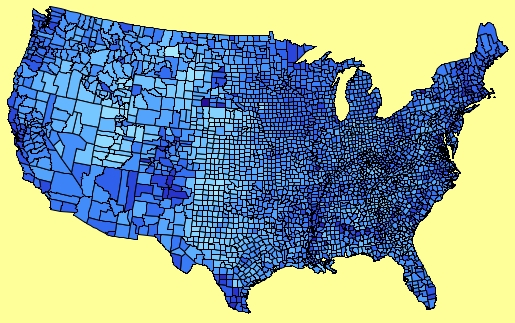

US County Map with full saturation:
Map saturated

US County Map with reduced boundaries:
Map light
Note the extreme difference between the maps. (We call this technique map-martinizing…)

Color scheme definition in Maps:
Mappings:

- linear
intensity = (value-min) / (max-min)

- rank
intensity = rank(value) / n

- normal
intensity = (qnorm( rank(value) / n )+3)/6;

Color Schemes:

- grayscale
RBG(1-intensity, 1-intensity, 1-intensity)

- red
RGB(1-intensity^4/2, 1-intensity, (1-intensity)^3/1.5+0.15)

- green
RGB( 1-intensity, 1-intensity^4/2, (1-intensity)^3/1.5+0.15)

- blue
RGB((1-intensity)^3/1.5+0.15, 1-intensity, 1-intensity^4/2)

- blue to red
RGB(intensity, 0, 1-intensity)

- blue to white to red
if( intensity < 0.5 )
RGB(2*intensity, 2*intensity, 1)
else
RGB(1, 1-(intensity-0.5)*2, 1-(intensity-0.5)*2)

if R and Rserve are installed

- heat
- terrain (see R documentation for details)
- topo




Selections
Selections in Mondrian can be made in two ways.
  1. Simple selection
  2. Selection sequences
These two selection modes can be selected in the option menu (or by pressing <meta>-m) to switch selection sequences either on or off. The default is off.

Simple selections are performed as any selection in the operating system's desktop. A new selection replaces the current selection.
Holding down the <shift> key will combine the new selection with the currently selected data in XOR-mode.
Holding down <shift> and <alt> will perform a selection in extended mode, which is AND by default, but can also be changed to OR in the Options menu.

When using Selection Sequences, any selection is recorded. The selection is represented by a transparent rectangle with 8 handles. Use any of these handles to resize the rectangle (slice) or click-drag the rectangle to move (brush). The popup-context menu on a selection rectangle will indicate the selection step and offer the choice of changing to a different selection mode (union, intersection, negation, xor), of deleting this step, or of deleting the complete sequence. Deleting a single step can also be performed by <backspace>. Use <meta-backspace> to delete the complete sequence. To query objects covered by a selection rectangle hold down the <shift> key to click through the rectangle.
Selection Sequences can span across plots and more than just one selection can be made per plot. To keep track of the selections made, all selections are annotated in the windows menu, just behind the window title, i.e. "Scatterplot(x,y) [2] [4]" tells us that selection steps 2 and 4 have been made in the scatterplot of the variables x and y.

Use <meta>-a to select all cases.

Selection Sequences

A map with two sample selections of a Selection Sequence. The first selection (south east states) always defaults to "replace" mode. The second selection (north west states) is queried with the context menu and the mode is switched from XOR to OR.

Note: Deleting all selections is not limited to the current plot window.



Color
Brushing

W
hereas selections are a more transient technique to mark a subgroup of interest, color brushing persistently assigns colors to cases. There are three ways to define persistent colors in Mondrian
  • Definition in a barchart or a mosaic plot using <meta>-b assigns a discrete scheme

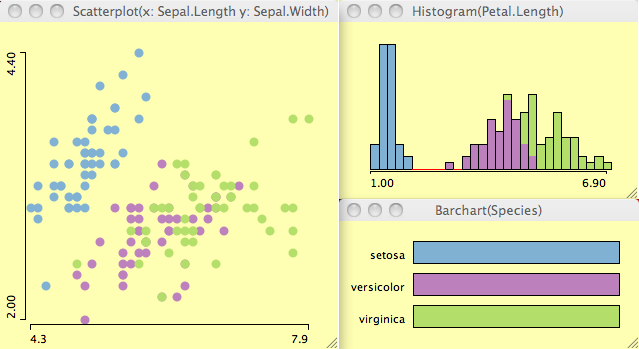

Color Brushing via
                a Barchart
  • Definition in a histogram using <meta>-b assigns a continuous "rainbow"-scheme
Color Brushing via
                a histogram
  • Individual colors may be assigned using <meta>-1 to <meta>-9

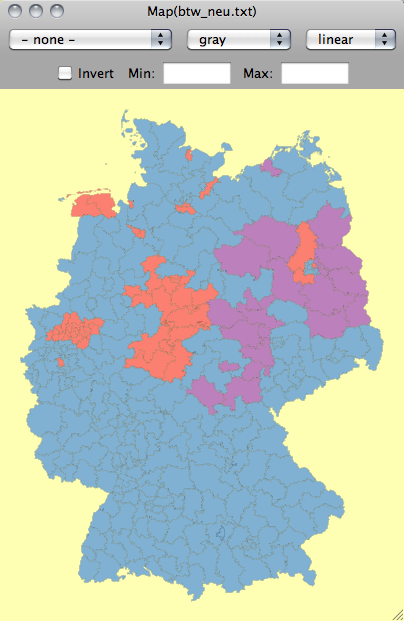

A color brushed Map Colorbrush
                      3
LEFT:
The map of the German electoral districts is colored according to the party winning the most votes in 2009.

TOP:
The barchart shows the same coloring for the different states.

To clear all colors use either the (context) menu option or press <alt>-<meta>-b.

Color-brushing is useful, but one should keep in mind two critical issues:
  • Permanently defined colors always interfere with the highlighing color and may cause confusion
  • Whereas overplotting is no problem for highlighting (highlighted cases are alway plotted on top) the overplotting issue with multiple colors can not be resolved satisfactorily (α-transparency won't work well here).
Some technical details of the assigned colors:
Qualitative (i.e., discrete colors)

// Color Brewer: 12, qualitative, Set3

Color[1] = RGB(128, 177, 211)
Color[2] = RGB(188, 128, 189)
Color[3] = RGB(179, 222, 105)
Color[4] = RGB(253, 180, 98)
Color[5] = RGB(252, 205, 229)
Color[6] = RGB(141, 211, 199)
Color[7] = RGB(251, 128, 114)
Color[8] = RGB(204, 235, 197)
Color[9] = RGB(255, 237, 111)
Color[10] = RGB(190, 186, 218)

Color[11..20] = Color[1..10].darker()
Color[21..30] = Color[1..10].darker().darker()
Color[31.. ] = Color[1..10].darker().darker()


Quantitative (i.e., continuous colors)

for(i=1..k)
brushColor[i] = HSB(0.225 + i/k*0.8, 0.5, 1.0);



 Conventions
T
he key to a smooth and efficient user interface is a set of conventions. Once the user has learned the basic operations like selection, querying, zooming and reformatting, she can perform them in any plot.

In an interactive graphical system, possible interactions can be carried out with mouse and keyboard. Since JAVA programs are not bound to a specific platform, Mondrian tries to only makes use of features, which can be found on all platforms. There are some restrictions like the one-button-mouse for most MAC-users (Steve give us the right button!!). The most commonly found modifier keys are SHIFT, CONTROL, ALT and META. CONTROL is blocked as the popup-trigger on the Macintosh, META misused under Windows and ALT blocked by many window-managers under Linux.

The interactions in Mondrian are assigned as follows:

  • click -> select a single object
  • click and drag -> create a selection (rectangle)
  • META-click and drag -> zoom in/out (middle-click (wheel) and drag on Windows & Linux)
  • CTRL and mouse-over -> query object (use CTRL-SHIFT to get extended query)
  • ALT and mouse-over -> query coordinates in plot
  • popup-trigger on background -> alter the plot setting
  • ALT-click and drag -> reorder objects
If possible, interactions with objects should use existing user knowledge. E.g., the resize operation of a selection rectangle in Mondrian is performed by dragging on one of the eight handles. This operation is well known from object based layout software such as Adobe Illustrator or QuarkXPress.


α-Channel
The α-channel can be used to specify the transparency of a painted object. This is very useful, when plotting many objects, as then heavy overplotting can occur. In this way the density of objects can be approximately displayed.

The figures below show an application using the well known "pollen" dataset.




The darker string in the parallel coordinate plot above is actually the word "EUREKA", which was included in the artificial dataset. Zooming the scatterplot below would show us the 6 letters of the word.




Modeling
Although Mondrian was not designed to support statistical modeling of datasets, a graphical modeling technique for categorical data using mosaicplots is built in.

The so-called ModelNavigator allows a stepwise graphical modeling of loglinear models.

The ModelNavigator basically inverts the use of graphs and models. Whereas packages like R or S-Plus usually assume a model, for which diagnostic plots can be plotted, the approach in Mondrian starts with a graph, then sets up a model, and uses the statistical measures as diagnostics, to check the graphical conclusions.

For a more precise description of this technique see the paper on Visualization of Loglinear Models.



The figure below shows the ModelNavigator used to model the Detergent dataset, often used to illustrate loglinear models for 3 and more variables.

model navigator
 Data
ASCII Data
Mondrian supports the standard ASCII data format, which consists of a header line of variable names and tab-delimited columns.

Numerical and alphanumerical data are both allowed. See example below:


Country    Car                     MPG        Weight     Horsepower
U.S.       Buick Estate Wagon      16.9       4.36       155
U.S.       Ford Country Squire Wgn 15.5       4.054      142
U.S.       Chevy Malibu Wagon      19.2       3.605      125
U.S.       Chrysler LeBaron Wagon  18.5       3.94       150
U.S.       Chevette                30         2.155      68
Japan      Toyota Corona           27.5       2.56       95
Japan      Datsun 510              27.2       2.3        97
U.S.       Dodge Omni              30.9       2.23       75
Germany    Audi 5000               20.3       2.83       103
Sweden     Volvo 240 GL            17         3.14       125
Sweden     Saab 99 GLE             21.6       2.795      115
France     Peugeot 694 SL          16.2       3.41       133
...



Since Mondrian determines the format of a column automatically (continuous or categorical), the specification can be overridden by putting a '/C' for continuous and a '/D' for discrete as a prefix in front of the variable name.

The mode of numerical variables can be set interactively:
mode
Double click (or use <meta>-T if you need to change more than one variable) a continuous variable (num) to change it to be categorical (cat). Vice versa double click cat to change to num.

Alphanumerical variables are tagged as alpha and cannot be changed to another type.

To get a fast and effective overview of which variables have missings, there are 'white'-versions of the icons of all three types, i.e. alpha-miss, cat-miss and num-miss indicating at least one missing in the particular variable.

When working with very many variables, just type the prefix of a variable name to search for a particular variable and to make the variable window select all those variables and also scroll to the first hit.
The rule for determining the type of a variable (excluding the '/C' and '/D' overrides) works as follows:
numCases <- Number of instances in the dataset
numCat <- Number of distinct cases in a variables

if( not is.numerical(x) ) then
mode(x) <- "alphanumerical"
else
if ( numCases > 800 ) then
if( numCat < 15 * log( numCases )/log(10) - 1 )
mode(x) <- "categorical"
else
mode(x) <- "continuous"
else
if( numCat < 1.5 * sqrt( numCases )
mode(x) <- "categorical"
else
mode(x) <- "continuous"

The threshold as R code snippet:
>
> i <- 1:1500
>
> plot(i, (i>800)*(15 * log(i)/log(10) - 1) + (i<=800)*(1.5 * sqrt(i)),
type='l')
>
Polygon Data must be stored in a separate map file.

The format for map-data

The dataset must include one variable of references, which the polygons refer to. This variable must start with '/P'. If a dataset is asociated with polygons, there must be an empty line after the data matrix followed by the relative path+filename to the file containing the map data.

In the map file, each polygon must be defined as follows:

It must start with a header like

id \t name \t n
where id is the matching id from the reference variable. Name can be any arbitrary string naming the polygon. n is the number of points in the polygon.
This header is followed by x and y coordinates defining the polygon - separated by tabs, one pair per line. The first and last coordinates must match, i.e. the polygon must be closed.

An example for Union county:
...
-1.3050 0.7141

1761 /Pnew jersey,union 25
-1.2981 0.7112
-1.2997 0.7100
-1.2995 0.7097
-1.2990 0.7099
-1.2988 0.7098
-1.2991 0.7094
-1.2992 0.7090
-1.2999 0.7086
-1.2985 0.7088
-1.2969 0.7089
-1.2969 0.7088
-1.2964 0.7087
-1.2954 0.7088
-1.2951 0.7090
-1.2947 0.7095
-1.2945 0.7095
-1.2942 0.7100
-1.2942 0.7102
-1.2945 0.7103
-1.2949 0.7103
-1.2956 0.7106
-1.2965 0.7108
-1.2970 0.7107
-1.2976 0.7108
-1.2981 0.7112

1762 /Pnew jersey,warren 33
-1.3112 0.7149
...



R-dataframe

M
ondrian supports loading data directly from R workspaces. To do so, you only need to specify the R workspace file (in most cases it will default to .RData). Once the workspace file is chosen, Mondrian lists all dataframes within this workspace. Selecting the desired dataframe will dump a temporary file from R and read this file into Mondrian.


Load R Dataframe
The following command is used to dump the data within R

> write.table(rDataSetToDump,
"<WhereYourWorkspaceSits>/.MondrianTmpImport.txt",
quote=FALSE,
sep="\t",
row.names = FALSE)



Database
Connections

The development version of Mondrian allows the connection to databases via the JDBC interface.

Currently this type of connection, which leaves the data entirely inside the database, is under further development and is thus not available in the latest releases.

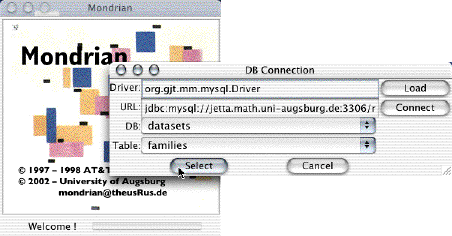

The figure below shows the database connection dialog:


Trans- formation
There is no doubt, that computations and transformations of data are better done in R than in Mondrian. Nonetheless, there are some basic transformations we want to be able to perform within Mondrian, without being forced to go to R.

The simple transformations include
- +, -, *, /
- -x, 1/x
- log(x), exp(x)
- min(x1, ..., xk), max(x1, ..., xk)
(creates two new variables, one with the value,
one with the variable label)
There are also two multivariate transformations which perform dimension reduction
MDS (multidimensional scaling)
creates a scatterplot of the 2-d scaling:
>
> tempD <- dist(scale(tempData))
> is.na(tempD)[tempD==0] <- T
> startConf <- cmdscale(dist(scale(tempData)), k=2)
> sMds <- sammon(tempD, y=startConf, k=2, trace=F)
>

PCA (principal component analysis)
creates k principal components out of k input variables
>
> pca <- predict(princomp("+call+" ,
data = tempData,
cor = [FALSE|TRUE],
na.action = na.exclude))
>


Support
Sample Data

H
ere are some sample datasets, which are ready to load and test with Mondrian (make sure to save the link directly to preserve the tabs):

Titanic
Data set on the 2201 passengers and crew of the Titanic. Purely categorical with data on class, gender, age and survival.

Pollen
Fake data set with hidden feature, which is easily found with α-channel features.

Olive Oils
Data set on Italian olive oils. Several fatty acids were measured for oils from different regions.

Tipping
Data on tipping behaviour in a restaurant located in a shopping mall. See Quickstart as well.

US Election 2004 (includes map file)
Data on the 2004 US presidential election. Includes polygons of the Counties of the US. Data courtesy of GeoVISTA (http://www.personal.psu.edu/users/a/c/acr181/election.html)
Map Library
S
ince the new map format was introduced, map files can be used separately from a specific data file. This allows sharing of map-files, such that users don't need to create their own maps, but can build upon the work of others. Here is a first collection of map files:


Files

Area Level Map Data
Contributor / Remarks
 World States World.map
World.txt based on the S world map (~ 1998 borders)
 US States
US_States.map US_States.txt US States incl. Akaska and Hawaii
Counties
US_Counties.map US_Counties.txt US Counties excl. Akaska and Hawaii
 Germany
States
Bundeslander.map Bundeslander.txt 16 German federal states
Voting Districts
Wahlkreise.map Wahlkreise.txt German electoral districts
ZIP Level 5
PLZ5.map PLZ5.txt German ZIP codes
City of Munich
Munich.map Munich.txt Admin. districts of Munich
 Italy Regions Italy.map
Italy.txt
part of the VDS Tech data on Europe
France Regions France.map France.txt part of the VDS Tech data on Europe
Departments MAP_France1.map FranceD.txt thanks to Antony
 ...
...
...
...
...

Please feel free to contribute your maps to share them with other users (make sure you don't violate any copyright and only submit maps that are in the public domain). The data files here are dummies, which connect to the ids in the map file and identify the polygons by region name or region id.

The R-package maptools allows importing MapInfo® files into R and exporting these files in Mondrian format. Here is a short R-code snippet which should basically do the job:
>
> library(maptools)
>
> # get an example shp-files and unpack it
>
> system("wget http://www.vdstech.com/mapdata/brazil.zip")
> system("unzip brazil.zip")
>
> # load via maptools and dump in Mondrian format
> # Note that you get "brazil.txt" and the mapfile "MAP_brazil.txt"
>
> xx <- readShapePoly("brazil.shp")
> sp2Mondrian(xx, file="brazil.txt")
>
We hope to grow the map library soon, so many Mondrian users can benefit from using maps in the public domain. There is also a collection of SHP-files at VDS-Technology.
(Everybody who ever used their own data in
MapInfo® on a Windows machine will find the map handling and interactive features in Mondrian amazingly fast and flexible)


Reference  Card

I
f you need help on Mondrian's short cuts, the "Reference Card" is the place to go. It can be  accessed from the "Help" menu.
Reference
                  Card


Preferences
M
ondrian features a preferences dialog, to set your favorite background and highlighting color. Five schemes are preset. If you have some other intriguing color scheme, please let me know and I'll add it.
You may save your own customized scheme, if none of the defaults suits you.



Preference
Here are the color definitions in RGB HEX

Background Objects Text/Lines Highlighting
RoSuDa classic (ff,ff,99) (c0,c0,c0) (00,00,00) (00,ff,00)
Terra di Siena (df,b8,60) (c0,c0,c0) (00,00,00) (b4,60,87)
Xtra red (ff,ff,B3) (c0,c0,c0) (00,00,00) (ff,00,00)
DataDesk (00,00,00) (00,00,00) (ff,ff,ff) (ff,00,00)
Daltonian (00,99,99) (c0,c0,c0) (00,00,00) (ff,74,00)


Downloads
By downloading any version of Mondrian, you accept the following license:

Copyright (c) 1997-1998 AT&T Labs Research,
              2002-2006 University of Augsburg.

This program is free software; you can redistribute it and/or modify
it under the terms of the GNU General Public License as published by
the Free Software Foundation; either version 3 of the License, or (at
your option) any later version.


This program is distributed in the hope that it will be useful, but
WITHOUT ANY WARRANTY; without even the implied warranty of
MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU
General Public License for more details.


You should have received a copy of the GNU General Public License
along with this program; if not, see <http://www.gnu.org/licenses/>.

Read-only svn-access to the source code:

svn://svn.rforge.net/org/trunk/rosuda/Mondrian/


Binaries for Windows, MacOSX and Linux:

1.5b as of 8/28/2013 (beta version!)
Windows (exe-file)
UNIX (JAR-file)
Mac OS X (Important Note on Apple Security Settings!)


Changes:
Nightly Build Beta including:
- Fixed performance bug in very large maps (>10k polygons)
- First draft of a universal text-file importer


1.2 as of 1/11/2011.
Windows (exe-file)
UNIX (JAR-file)
Mac OS X (Disk-Image containing application and demo data)


Changes:
- Principal Curves
- Smoothers by color
- Further enhancements to color schemes and alpha transparency
- Stable sorting of levels
- C
olumnwise minimum and maximum transformation
- "Bilingual" Reference Card
- Bug fixes (19, 64, 82, 104, 150, 153, 155, 160, 161, 185, 186) and minor features added


1.1 as of 1/25/2010.
Windows (exe-file)
UNIX (JAR-file)
Mac OS X (Disk-Image containing application and demo data)


Changes:
- Load data directly from R workspace files
- New color schemes
- Compatible with Java 6 on all platforms
- Very many bug fixes (4, 27, 41, 44, 69, 75, 77, 78, 103, 112, 113, 114) and minor features added

Changes in Version 1.0 as of 12/18/2008.
- Autostart of Rserve under Windows and Linux
- Searchable variable list window
- Missing value plot is compatible to color brushing now

Changes in Version 1.0 beta12 as of 08/29/2008.
- Support for Rserve 0.5+
- Fixes and clean-ups

Changes in
Version 1.0 beta11 as of 03/19/2008.
- Image can be used in extended queries for URL variables
- New color scheme in maps
- Search in barcharts by typing a prefix of the level
- Fixes and clean-ups

Changes in Version 1.0 beta10 as of 12/16/2007.
- More consistent menu entries and menu labels for plot windows
- A 'Open Recent ...' menu entry
- Indication of missingness in the variable window icons
- Window sizes can now be set in the scale dialog box
- Censored zooming in barcharts (shift up/down-arrow) consistent with mosaic plots

Changes in Version 1.0 beta7 as of 05/13/2007.
- Rserve start-up compatible with Rserve for R2.5.x
- SPLOMs are available now (for those who like'm ...)

- histograms are more consistent now (weighted histograms support densities (needs Rserve), spinograms now work at any zoom level)
- better scaling and queries in parallel boxplots (still incomplete)
- several
fixes and enhancements ...

Changes in Version 1.0 beta3 as of 10/31/2006.
- simple transformations (+, *, -, /, log, 1/x, ...)
- selection order of variables in variable window is reflected in all multivariate plots!
- many minor fixes and enhancements ...

Changes in Version 1.0 beta1 as of 05/24/2006.
- new much faster loader (note: maps are now expected to be in a separate file)
- missing values (coded as "NA") are supported in all graphics
- missing value plot can be used to investigate the structure of the missing values.
- custom scaling (<meta>-j), scatterplot only, other plots to follow
-
color brushing (<meta>-b) in barcharts, mosaic plots and histograms (rainbow)
- <meta>-1...9 sets persistent colors for the current selection
- derived variables from selection- and color-state
- painting, via "OR"-mode in the first selection step of a selection sequence
- many minor fixes and enhancements ...

Changes in Version RC 1.0m as of 11/29/2005.
- Using 1.4.x JVM on all platforms.
- '<-' and '->' can be used to change the saturation of boundaries in maps.
- "Boxplot y by x" is now a separate menu item.
- Levels can now be sorted in boxplots y by x according to median or IQ-range.
- Plotting of 2-dim MDS (input is not carefully checked yet)

Changes in Version RC 1.0f as of 04/06/2005.
- Queries are now implemented via ToolTips.
- Further improvements to Parallel Coordinate Plots. See section for details!
- Maps now feature six different color schemes for shading choropleth maps.
- Under MacOSX you can now drop files on Mondrian to start the application and load the data.
- If you have R and Simon's Rserve installed on your machine, you find new features in

+ Histograms

+ Scatterplots

Changes in Version RC 1.0 as pf 09/24/2004:
-
Vast improvements to Parallel Coordinate Plots. Se section for details!
- Printing works via <meta>-P in all plots. In MacOS X use "Preview" to save as PDF.
- Additional sorting options in Barcharts.
- Histogram parameters can now be set manually as well.
- Choropleth maps can now be inverted and colored by rank.
- Yet another update to the L&F of selection sequences.

Changes in Version 0.99a as of 03/11/2004:
- an updated version of selection sequences. See the section for details.
- "window" menu and more intelligent window placement
- new controls to set width and origins in histograms
- zooming for all platforms (use middle mouse button on all other machines than mac)

Changes in Version 0.99 as of 11/18/2003
- Three new variations of Mosaic plots (same bin size, fluctuation diagram and multiple barcharts)
- Automatic sorting of axes in a parallel coordinate plot
- Use meta-R to switch the splitting direction of the last variable in a Mosaic plots
- Inverse color scheme for density highlighting in scatterplots
- Preference box to set highlight color and background color
- Zooming under Windows is still delayed because of a yet to be finalized major update on the interface

Changes in Version 0.98 as of 03/22/2003:
- Boxplots y by x. Just select a continuous variable and a categorical variable and choose 'parallel boxplots' in the plot menu.
- Regression lines in scatterplots (can be queried)
- Highlight color is now red!
- Add lines in scatterplots by third variables to visualize paths and other relationships.

Changes in Version 0.97a as of 11/21/2002:
- oneClick selection is introduced, i.e. a selection rectangle of size 0 will only select the clicked object, but NOT create a corresponding selection rectangle (selection is only temporary as with the select all feature (META-a))
- Bug fix in Scatterplots
- Update on selection rectangle appearance

Changes in Version 0.97 as of 7/12/2002:
- META-a will select all points in any plot now
- alpha-channel works in scatterplots (use arrow keys to change) and parallel coordinates (via pop-up).
- scatterplot are automatically binned, if the dataset is really large (can be overridden)
- interrogation in maps added

First public release 0.96 as of 4/9/2002

Note: The JAR-file can be started by a simple double click. Within Windows, Sun's JRE or JDK must be installed (make sure that .jar files are not associated with any decompression application), Mac OS X users just smile.

References

T
he best reference for citing Mondrian - apart from the website - is 'the book'.

@book{1502124,
 author = {Theus,, Martin and Urbanek,, Simon},
 title = {Interactive Graphics for Data Analysis: Principles and Examples (Computer Science and Data Analysis)},
 year = {2008},
 isbn = {1584885947, 9781584885948},
 publisher = {Chapman \& Hall/CRC},
}

There is also the JSS-Paper:

@article{Theus:2002:JSSOBK:v07i11,

  author =    "Martin  Theus",
  title =    "Interactive Data Visualization using Mondrian",
  journal =    "Journal of Statistical Software",
  volume =    "7",
  number =    "11",
  pages =    "1--9",
  day =      "22",
  month =    "11",
  year =     "2002",
  CODEN =    "JSSOBK",
  ISSN =     "1548-7660",
  bibdate =    "2002-11-22",
  URL =      "http://www.jstatsoft.org/v07/i11",
  accepted =    "2002-11-22",
  acknowledgement = "",
  keywords =    "",
  submitted =    "2002-07-11",
}
Help

Getting around Apple's security settings
The latest MacOS X versions are quite strict on starting applications downloaded from the web. The security setting in the preference pane looks like this:

Apple security preference pane

If you don't set the option to "Anywhere", you might be ending up with an error message like this, when you try to start Mondrian from the disk-image:

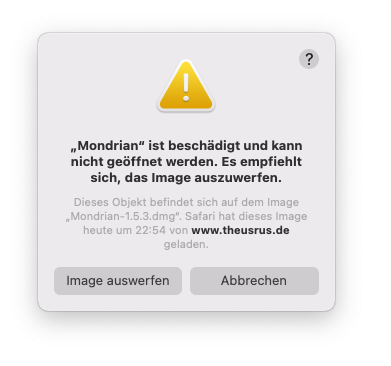

Error message
This is quite misleading and actually complete nonsense.

Once you copied Mondrian to your Applications folder and started it from there, you can go back to the preference pane and set the option back to "Mac App Store and identified developers", so you can profit from the higher security level.


Starting Rserve
Getting a tiny warning message after starting Mondrian only indicates that there is no connection to R. This will NOT harm Mondrian in its core functionality - one can happily live without the R connection.

Rserve is now a regular R package and can be installed as such, i.e. you just need to type the following R command:
> install.packages("Rserve")
Since version 1.0, Mondrian will start Rserve automatically under MacOSX, Windows and Linux. To start Rserve manually, see detailed instructions here.

If the automatic start of Rserve fails you may debug within R by typing
> Rserve()
to start it manually. Sometimes you may get in trouble with an "old" Rserve server still running after an update of R and/or Rserve. The easiest way to solve this problem is a simple restart.


File Formats

If you have trouble getting data loaded into Mondrian, load the file into MS Excel first, and check whether
  • all variables have a name in the header, i.e. the first row/line
    (When saving data from R without omitting the row names, the "row.name" column has no header name!)
  • there are empty cells in the file. Mondrian currently does not tolerate empty entries, you have to use "NA".
When exporting from MS Excel, choose the ".txt" format (which is "tab separated columns" for recent MS Office installations).

If your dataset is more complex or too large, you may do the similar "data cleaning" procedure using R. It is easiest when you use the JGR GUI, which has an "Open Dataset" menu item and allows you to save the file from the object browser.

If you have your data in R already, you may use the "Open R data.frame" command from the file-menu.


Starting a JAR File under Windows
(if one can't use "Mondrian.exe" for some reason)

After an installation of SUNs latest JRE (or JDK), .jar-files can be started by a simple double click. If this does not work, one of the following two problems might be the cause
  1. There is no application associated with the suffix .jar. To change this, follow these instructions.
  2. Another application "grabbed" the responsibility for .jar-files - usually "WinRAR" - after the installation of the JRE. To change this, you must:
  • Launch the WinRAR application
    (Start -> Programs -> WinRAR -> WinRAR)
  • Once the application has been started, select "Options", "Settings".
  • Select the "Integration" tab.
  • This tab lists all associated file types for the WinRAR application. De-select the "JAR" type and click "Ok".
  • Close the WinRAR application.
It may take another restart, to convince the system that things have actually changed, but this should do it.


Other Problems
Please mail to either mondrian@theusRus.de or the mailing list stats-rosuda-devel, or submit your issue to the
Bugzilla based bug-tracker.

Topics
of general interest will be posted on this page.


Martin Theus, 8/29/2013
